What Is a Weight Roller? Here’s What You Need to Know
Have you often heard the term weight roller when having the CVT system on an automatic motorcycle serviced, but are still unsure what this component actually does? Also commonly referred to as a CVT roller, the weight roller is one of the key components in an automatic motorcycle’s transmission system.
Understanding the function of the weight roller is important, especially for motorcycle owners who want to better understand the condition of their vehicle’s CVT system. By recognizing how it works and identifying signs of wear, component inspections during servicing can be carried out more effectively.

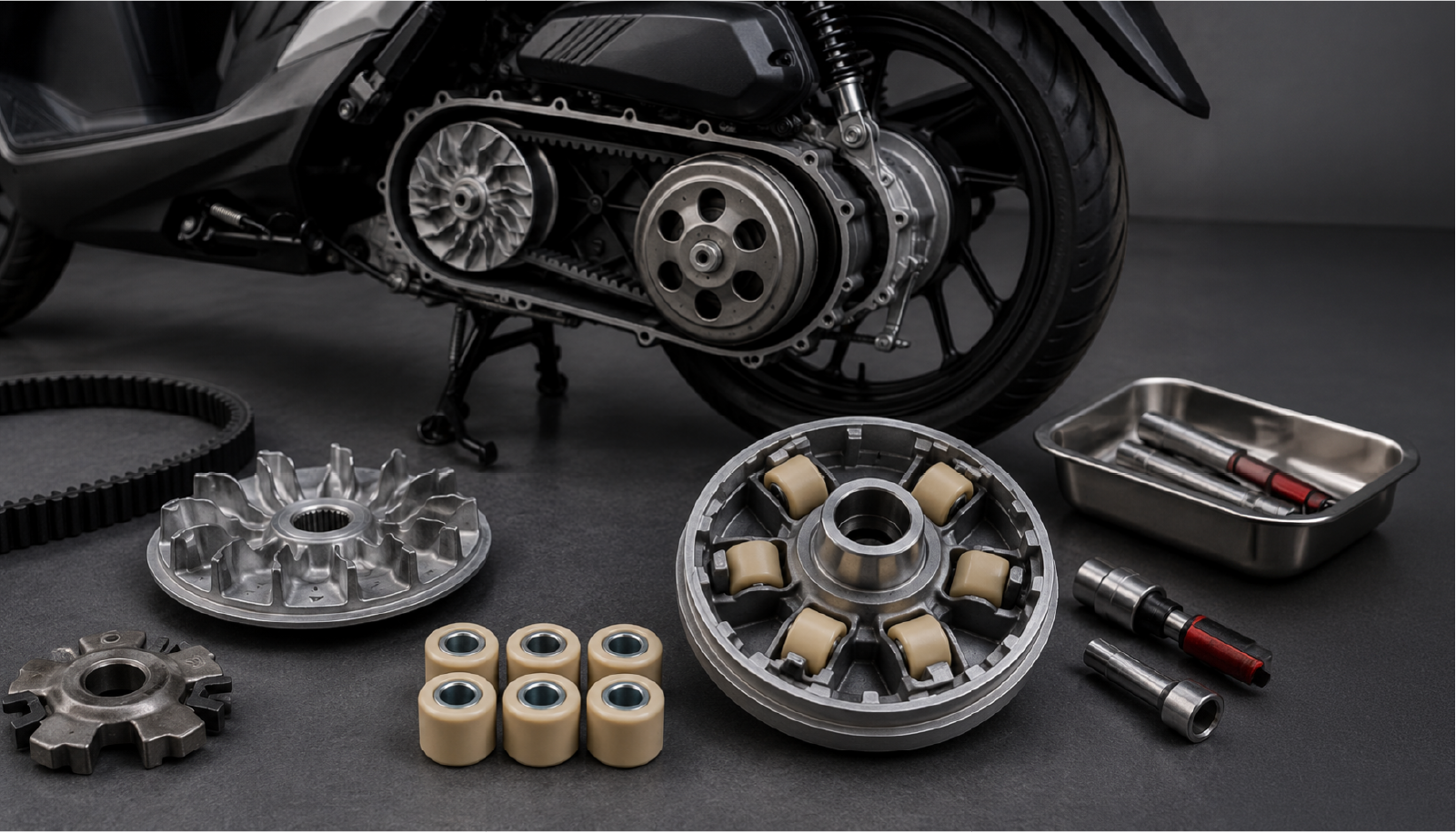

What Is a Weight Roller in a Motorcycle CVT?
A weight roller is a cylindrical component located inside the roller housing within the front or primary pulley assembly of a CVT. It works together with the pulley mechanism to support automatic changes in the transmission ratio.
In simple terms, the weight roller uses centrifugal force generated as engine speed increases. Its movement affects the position of the pulley, allowing the V-belt to move to a different position according to the operating conditions of the CVT system.
So, when asking what a weight roller is in a motorcycle CVT, it can be understood as one of the components that supports the CVT mechanism in adjusting the transmission ratio without requiring manual gear shifting.

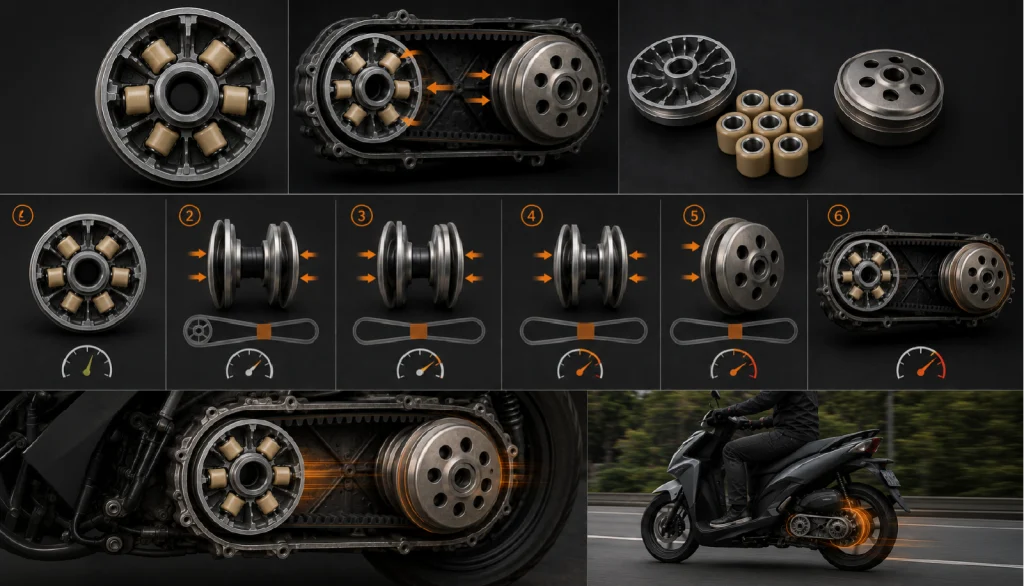

Functions of the Weight Roller in a CVT System
The weight roller plays an important role in the operation of a CVT system. So, what does this component do, and how does it support CVT operation? Here are some of its key functions:
- Helps drive the movement of the primary pulley as engine speed increases.
- Helps change the position of the V-belt on the pulley.
- Supports the automatic adjustment of the transmission ratio.
- Contributes to the acceleration response characteristics based on the roller’s weight.
- Supports the proper operation of the CVT ratio-changing mechanism.
- Works together with the variator and other CVT components during power transmission.
Therefore, selecting a weight roller that matches the vehicle’s specifications is important to support the proper operation of the CVT system.
Types of Weight Rollers Based on Weight
Weight rollers for automatic motorcycles are available in different weight options. These differences affect the operating characteristics of the CVT mechanism, so the appropriate weight should be selected according to the vehicle’s specifications and intended application.
- Lightweight Weight Roller
A lighter weight roller can produce different pulley response characteristics as engine speed changes. Its use should be determined based on the requirements and specifications of the CVT system. - Standard Weight Roller
Generally selected according to the vehicle manufacturer’s original specifications. This type can be an appropriate choice when replacing the component while maintaining the intended operating characteristics of the CVT system. - Heavier Weight Roller
A heavier weight roller can produce different pulley movement characteristics compared with a lighter roller. Its selection cannot be generalized for every motorcycle, as the specifications of the CVT system need to be taken into consideration.
With several weight options available, a weight roller should not be selected simply based on the assumption that lighter or heavier is always better. Compatibility with the vehicle’s specifications is important to ensure that the component operates appropriately within the CVT mechanism.

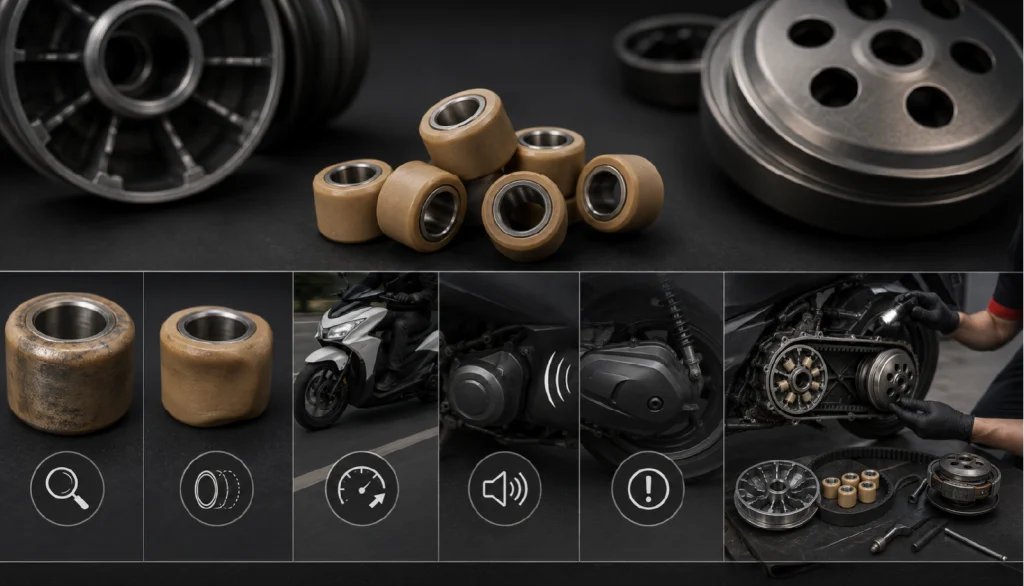

Signs That a Weight Roller May Need Inspection
Several conditions may indicate that the weight roller should be inspected, including:
- The roller surface appears worn or uneven.
- The shape of the roller has changed.
- Acceleration response feels different from before.
- Unusual noises come from the CVT area.
- The CVT system does not respond as it normally does.
These signs are not, by themselves, a definitive diagnosis. If unusual conditions are noticed, it is recommended to have the CVT system inspected thoroughly by a qualified technician or workshop.
Now that you understand the function and operation of the weight roller, choosing the right spare part is also an important consideration when maintaining the CVT system.
PT. Sejati Jaya Tangerang is an automotive spare parts manufacturer providing various components for CVT systems. One of its product lines includes Weight Rollers, also known as CVT Rollers, which are manufactured by PT. Sejati Jaya Tangerang.
Contact us to learn more about our products and find the right spare parts for your needs.
